ULTRA+

Specifications

  • Tough, easy-clean rubber seat foams.
  • EAF (Energy Absorbing Foam).
  • 200mm Non-linear ULTRA-SMOOTH travel (no weight adjustments needed between 40kg and 120kg).
  • Side grab handles.
  • ULTRA light 13kg total.
  • Efficient 580 x 580mm centers for deck layout spacing.
  • Less fatigue from 3 axis shock mitigation for reduced whiplash from lateral and fore-aft forces.
  • Non-corroding 316 stainless, polycarbonate, foam, and Flexanite.
  • Super low maintenance – See Operational info.
  • Tested 1 Million full 10g impacts (200mm displacement, 100ms duration, 100kg payload).
  • Crash tested to HSC2000 Annex 10 requirements.
  • 3 year global Manufacturers Warranty on all parts
  • Lab tested to outperform well known European brand (See report here).
  • Easy one man installation and repairable (shock can be replaced in under 2 minutes by one person).

If you need part or accessory separately or any special requirement, please inquire here.

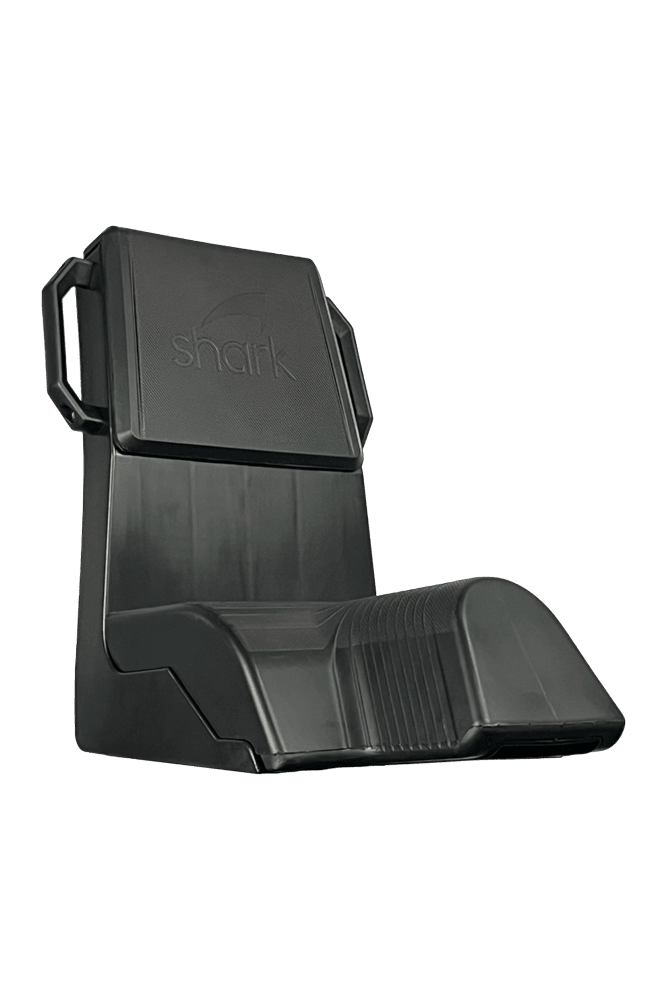

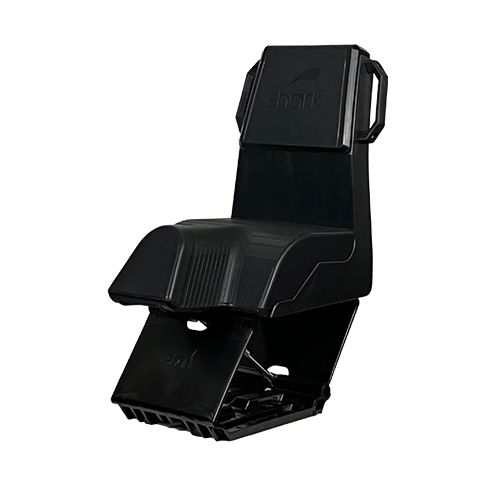

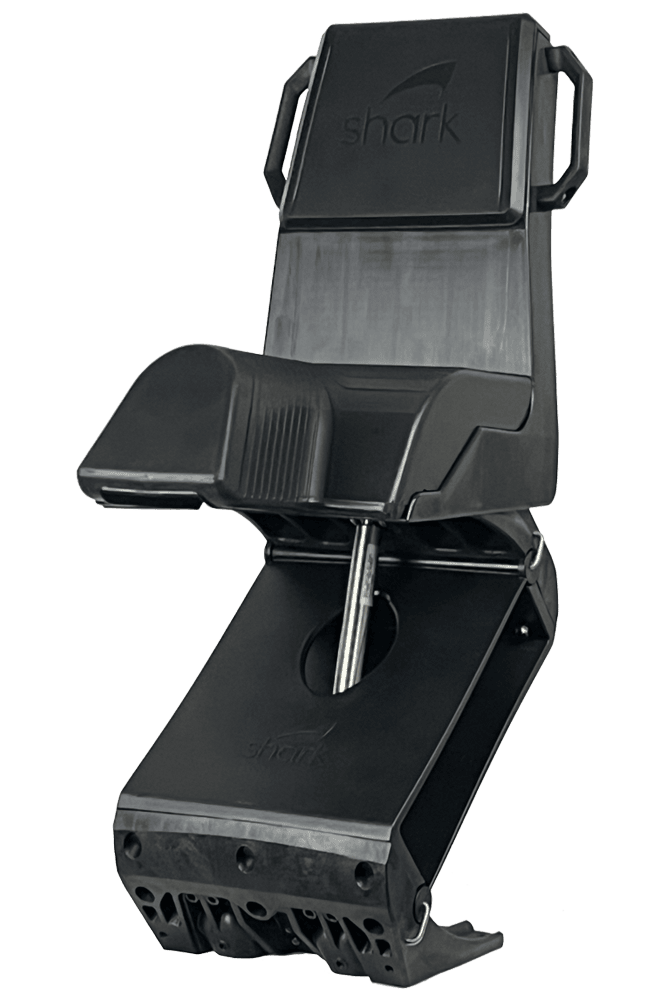

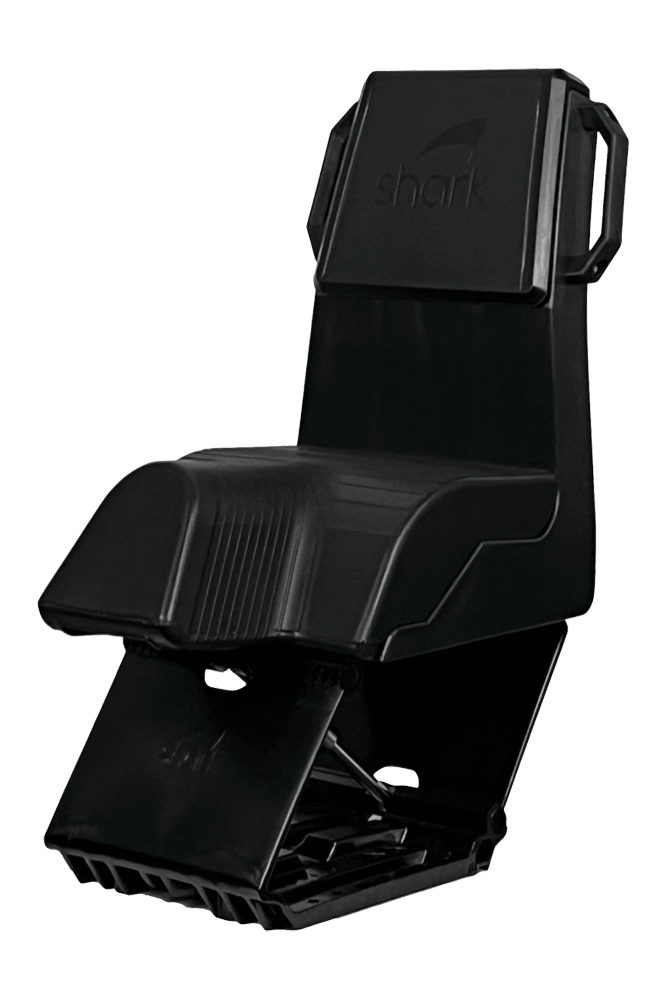

The Shark ULTRA Plus is used when a simple, reliable, and affordable Jockey suspension seat is required. It’s equipped with tough, modular foam pads which are very easy to clean.

Ultra plus brochure

Ultra plus technical dimensions

Technical dimensions of Ultra +

Shark Ultra Pro

Technical dimensions of Ultra Pro

Ultra + front viewUltra + back view
